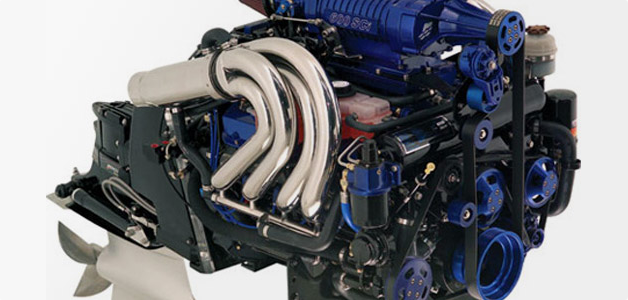

Mercury Racing HP 600 SCI

HP:

600 (447kW)

Full Throttle RPM:

4800—5200

Displacement Liter/CID:

8.2/502

Bore & Stroke (in/mm):

4.47 x 4.00 / 113 x 102

Compression Ratio:

7.50:1

Cylinders:

V8

Alternator Amp/Watt:

65 / 917

Ignition System:

PCM 03 Distributorless

Fuel System:

Sequential Fuel Injection

Fuel Requirements:

91 Posted Octane (R+M)/2 (96 RON) International

Transmission:

(Six) w/Huber 600 Series

Drive Unit:

Bravo One XR, Bravo One XR Sport Master (Std. or Short) or Dry–Sump Six Drive

Gear Ratio:

Bravo — 1.26:1, 1.35:1, 1.50:1 (Right Hand or Left Hand); Dry–Sump Six — Application Dependent

Length (in/mm):

35.7/907 (Transom mount to front engine)

Width (in/mm):

33/838

Height (in/mm):

27.2/691

Weight (lbs/kg):

1267/575
